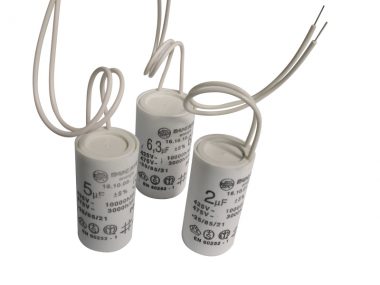

The dielectric is a polypropylene film, the conductive plates consist of a very thin metal deposit obtained by vacuum evaporation. The case and cover are made of self-extinguishing plastic: the capacitative part is sealed with polyurethane resin. The principal features of this series of capacitors are:

• Low leakage anti-inductive winding
• Self-regenerating properties that prevent short-circuiting
• Small size and light weight
• The capacitor is completely free of risks of liquid leaks
• safety class: P0

Conforms to theRoHS directive

Certification: EN 60252-1 VDE IMQ ASE CE

Technical Details:

Voltage 450 Volt 50 Hz

Lifespan 3000 hours

Capacity tolerance : ± 5%

Working frequency: from 50 to 60 Hz

Protection grade: IP55

Plastic housing with 150 mm long single-pole cable
