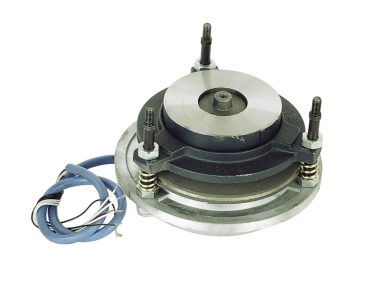

Electric brakes, grooved series
V.A. = Volt/Ampere
KPM = Braking torque kg/m
L = Max size of the air gap allowed, which is four times the “L” dimension
Packs: single pieces
General catalogue - Find out more
slide 2 of 3
Filters
| FAET PART NUMBER | DESCRIPTION |
|---|---|
| 0901003 | MEC 63 A.C. BRAKE - GROOVED |
| 0901007 | T70 A.C. BRAKE - GROOVED |
| 0901011 | MEC 71 A.C. BRAKE - GROOVED |
| 0901015 | T80 A.C. BRAKE - GROOVED |
| 0901019 | MEC 80 A.C. BRAKE - GROOVED |
| 0901023 | T90 A.C. BRAKE - GROOVED |
| 0901027 | MEC 90 A.C. BRAKE - GROOVED |
| 0901031 | T100 A.C. BRAKE - GROOVED |
| 0901035 | T110 A.C. BRAKE - GROOVED |
| 0901039 | T120 A.C. BRAKE - GROOVED |
| 0901041 | T120/D A.C. BRAKE - GROOVED |
| 0901045 | MEC 132/D T140/D A.C. BRAKE - GROOVED |
| 0901051 | |
| 0901053 | MEC 112 A.C. BRAKE - GROOVED |

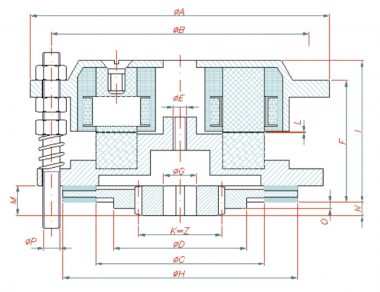

| MOTOR SIZE | A | B | H | L | P | V.A. | KPM | N° DISKS | PRICE EACH |
|---|---|---|---|---|---|---|---|---|---|
| MEC 63 | 122 | 110 | 102 | 02 | 6 MA | 45 | 0,9 | 1 | 244,70 |
| T 70 | 130 | 115 | 102 | 02 | 6 MA | 45 | 0,9 | 1 | 239,75 |
| MEC 71 | 134 | 121 | 113 | 02 | 6 MA | 50 | 1,2 | 1 | 260,65 |
| T 80 | 145 | 125 | 113 | 02 | 6 MA | 50 | 1,2 | 1 | 264,15 |
| MEC 80 | 155 | 138 | 128 | 03 | 8 MA | 65 | 2,5 | 1 | 265,95 |
| T 90 | 170 | 145 | 128 | 03 | 8 MA | 65 | 2,5 | 1 | 257,60 |
| MEC 90 | 173 | 155 | 143 | 03 | 8 MA | 90 | 3,5 | 1 | 295,25 |
| T 100 | 180 | 160 | 143 | 03 | 8 MA | 90 | 3,5 | 1 | 310,50 |
| T 110 | 200 | 170 | 158 | 03 | 10 MA | 105 | 5 | 1 | 300,10 |
| T 120 | 230 | 200 | 182 | 04 | 12 MA | 150 | 8 | 1 | 353,25 |
| T 120 D | 230 | 200 | 182 | 05 | 12 MA | 150 | 16 | 2 | 562,50 |
| MEC 132D-T 140D | 240 | 210 | 193 | 06 | 12 MA | 180 | 22 | 2 | 683,20 |
| 305,80 | |||||||||
| MEC 112 | 218 | 200 | 182 | 04 | 10 MA | 150 | 8 | 1 | 345,45 |
