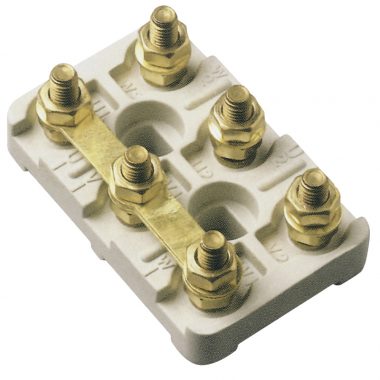

MEC Series 6-pin bases
CONSTRUCTIONAL AND FUNCTIONAL CHARACTERISTICS:
All the terminal boards are manufactured to meet precise functional and safety requisites: the pins, produced by pressing or turning, have a truncated cone base with cross head to prevent rotation and axial displacement and consequent extraction from the seat of the terminal block.
All the terminal boards are manufactured to meet precise functional and safety requisites: the pins, produced by pressing or turning, have a truncated cone base with cross head to prevent rotation and axial displacement and consequent extraction from the seat of the terminal block.
The shape of the seat of the pin has been studied for the use of automatic screwdrivers for tightening nuts.
The terminal boards have been studied to prevent rotation of the terminal lugs in their housings, (consequence of tightening nuts becoming loose caused by motor vibration), which come into contact with each other or with the walls of the terminal box, they can cause a short circuit.
The terminal boards can be used with normal or pre-insulated terminal lugs.
Normal terminal lugs, even if completely free to rotate, will never drop below a minimum distance of 9.5 mm (as required by standard UL 1004 “Electric Motors” for voltages
Materials used and reference norms:the terminal boards are produced using self-extinguishing insulation materials having excellent mechanical, thermal and dielectric properties.
Moulded material: BMC RF resin with UL certification (file QMFZ2.E111031) having excellent resistance to arcs and creeping currents and level of self-extinguishing V0 (UL94) for applications in class F motors approved by the standards of Underwriters Laboratories Inc OT63 CW508L CuZn37.
The items with code nos. 3309001 to 3309011 have UL CERTIFICATION
General catalogue - Find out more
slide 1 of 1
Filters
Filters
| FAET PART NUMBER | MODEL |
|---|---|
| 3309001 | BASETTE 40X25 6 PERNI 4MA |
| 3309002 | BASETTE 44X27 6 PERNI H:12MM 4MA |
| 3309003 | BASETTE 50X32 6 PERNI 4MA |
| 3309006 | BASETTE 56X36 6 PERNI 5MA |
| 3309009 | BASETTE 70X45 6 PERNI 6MA |
| 3309011 | BASETTE 82X52 6 PERNI 6MA |
| 3309012 | BASETTE 82X52 6PERNI 8MA |
| 3309015 | BASETTE 95X60 6 PERNI 8MA |
| 3309019 | BASETTE 115X70 6PERNI 10MA |
| 3309021 | BASETTE 126X81 6 PERNI 12MA |
| 3309022 | BASETTE 146X92 6 PERNI 14MA |
| 3309024 | BASETTE 165X103 6 PERNI 16MA |
| 3309027 | BASETTE 240X150 6 PERNI 20MA |
| SIZE | DESCRIPTION | Sale package | PRICE EACH |
|---|---|---|---|
| 40X25* | 6 PINS 4MA TERMINAL BOARD 40X25 | 20 | 2,77 |
| 44X27* | 6 PINS 4MA TERMINAL BOARD 44X27 | 20 | 2,84 |
| 50X32* | 6 PINS 4MA TERMINAL BOARD 50X32 | 20 | 2,97 |
| 56X36* | 6 PINS 5MA TERMINAL BOARD 56X36 | 20 | 4,22 |
| 70X45* | 6 PINS 6MA TERMINAL BOARD 70X45 | 10 | 8,32 |
| 82X52* | 6 PINS 6MA TERMINAL BOARD 82X52 | 6 | 7,97 |
| 82X52 | 6 PINS 8MA TERMINAL BOARD 82X52 | 6 | 17,82 |
| 94X58 | 6 PINS 8MA TERMINAL BOARD 95X60 | 6 | 27,95 |
| 115X70 | 6 PINS 10MA TERMINAL BOARD 115X70 | 6 | 54,39 |
| 126X81 | 6 PINS 12MA TERMINAL BOARD 126X81 | 3 | 78,91 |
| 146X92 | 6 PINS 14MA TERMINAL BOARD 145X92 | 3 | 100,83 |
| 165X103 | 6 PINS 16MA TERMINAL BOARD 165X103 | 1 | 140,79 |
| 240X150 | 6 PINS 20MA TERMINAL BOARD 240X150 | 1 | 382,50 |
