Repair and Maintenance

IMM Series

IMM 40-50, 63, 71-80

These are suitable for transferring liquids containing impurities of dimensions up to 2-3 mm.

Hydraulic components:

IMM 40-50: impeller, scroll and pump body in PBT mean that it can be used with water, emulsions, and oily substances in general, with viscosity not exceeding 3° Engler (21 CST). The temperature of the liquid must not exceed 70°C. they are commonly used on:

Machine tools (milling machines – lathes – drills)

– Machines for glass work (TRI version)

– Heating and air conditioning systems

IMM 63: impeller and scroll in nylon, and pump body in aluminium mean that it can be used with water, emulsions, and oily substances in general, with viscosity not exceeding 3° Engler (21 CST).

The temperature of the liquid must not exceed 90°C. They are commonly used on:

– Machine tools (milling machines – lathes – drills)

– Machines for glass work (TRI version)

– Surface treatment systems (cast iron version)*

– Filtration systems

– Heating and air conditioning systems

IMM 71-80

These are suitable for transferring liquids containing impurities of dimensions up to 2-3 mm.

Hydraulic components:

IMM 71-80: brass impeller, scroll and pump body in aluminium mean that it can be used with water, emulsions, and oily substances in general, with viscosity not exceeding 3° Engler (21 CST).

The temperature of the liquid must not exceed 90°C. They are commonly used on:

– Machine tools (milling machines – lathes)

– Machines for glass work (TRI version)

– Surface treatment systems (cast iron version)*

– Filtration systems

– Heating and air conditioning systems

IMM 90-100

These are suitable for transferring liquids containing impurities of dimensions up to 3-4 mm.

Hydraulic components:

IMM 90-100: impeller and scroll in cast iron, and pump body in steel mean that it can be used with water, emulsions, and oily substances in general, with viscosity not exceeding 3° Engler (21 CST)..

The temperature of the liquid must not exceed 90°C. They are commonly used on:

– Machin tools

– Machines for glass work

– Surface treatment systems

– Filtration systems

– Painting booths

FLOW RATE CURVES

+ Show More

General catalogue - Find out more
70
71
Filters
Filters
FAET PART NUMBER DESCRIPTION
0500001 SACEMI ELECTROPUMP IMM 40A/80
0500002 SACEMI ELECTROPUMP IMM 40A/120
0500003 SACEMI ELECTROPUMP IMM 40A/150
0500004 SACEMI ELECTROPUMP IMM 40A/180
0501001 SACEMI ELECTROPUMP IMM 50A/80
0501002 SACEMI ELECTROPUMP IMM 50A/120
0501003 SACEMI ELECTROPUMP IMM 50A/150
0501010 SACEMI ELECTROPUMP IMM 90A/450
0501012 SACEMI ELECTROPUMP IMM 90B/450
0501016 SACEMI ELECTROPUMP IMM 63A/200
0501017 SACEMI ELECTROPUMP IMM 63A/250
0501018 SACEMI ELECTROPUMP IMM 63A/300
0501019 SACEMI ELECTROPUMP IMM 63B/200
0501020 SACEMI ELECTROPUMP IMM 63B/250
0501021 SACEMI ELECTROPUMP IMM 63B/300
0501022 SACEMI ELECTROPUMP IMM 71A/200
0501023 SACEMI ELECTROPUMP IMM 71A/250
0501024 SACEMI ELECTROPUMP IMM 71A/325
0501025 SACEMI ELEKTROPUMPE IMM 71B/200
0501026 SACEMI ELECTROPUMP IMM 71B/250
0501027 SACEMI ELECTROPUMP IMM 71B/325
0501028 SACEMI ELECTROPUMP IMM 80A/200
0501029 SACEMI ELECTROPUMP IMM 80A/250
0501030 SACEMI ELECTROPUMP IMM 80A/300
0501031 SACEMI ELECTROPUMP IMM 80A/350
0501032 SACEMI ELECTROPUMP IMM 80B/200
0501033 SACEMI ELECTROPUMP IMM 80B/250
0501034 SACEMI ELECTROPUMP IMM 80B/300
0501035 SACEMI ELECTROPUMP IMM 80B/350
0501040 SACEMI ELECTROPUMP IMM 90A/350
0501041 SACEMI ELECTROPUMP IMM 90A/600
0501042 SACEMI ELECTROPUMP IMM 90A/800
0501043 SACEMI ELECTROPUMP IMM 90B/350
0501044 SACEMI ELECTROPUMP IMM 90B/600
0501045 SACEMI ELECTROPUMP IMM 90B/800
0501046 SACEMI ELECTROPUMP IMM 100B/350
0501047 SACEMI ELECTROPUMP IMM 100B/600
0501048 SACEMI ELECTROPUMP IMM 100B/800
0501061 SACEMI ELECTROPUMP IMM 100B/450
0501145 SACEMI ELECTROPUMP IMM 50A/180
0501148 SACEMI ELECTROPUMP IMM 63A/150
0501150 SACEMI ELECTROPUMP IMM 63B/150
0501152 SACEMI ELECTROPUMP IMM 71A/440
0501154 SACEMI ELECTROPUMP IMM 71B/440
0501156 SACEMI ELECTROPUMP IMM 80A/530
0501158 SACEMI ELECTROPUMP IMM 80B/530

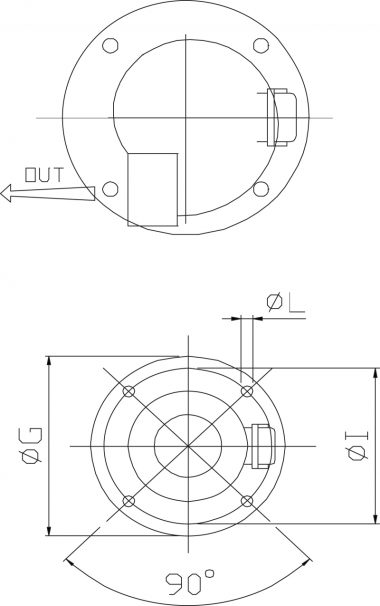

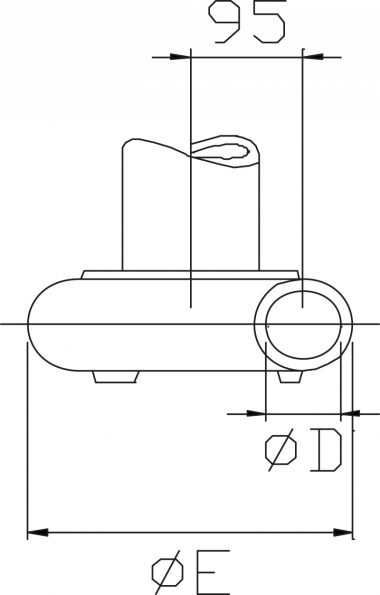

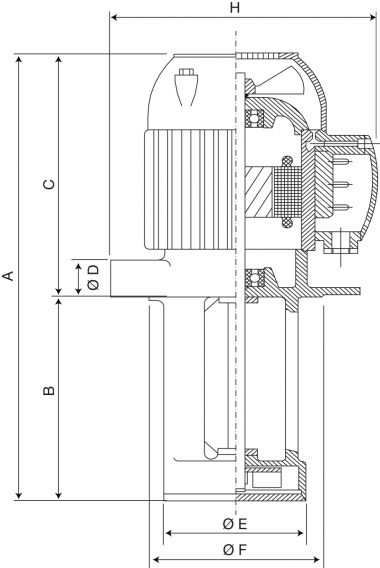

TYPE ABSORBED KW HP C MM ØD GAS ØE MM ØF MM ØG MM H MM ØI MM ØL MM A MM B MM PRICE EACH
IMM 40/A 0,07 005 144 3/8 78 90 130 140 114 7 224 80 126,11
IMM 40/A 0,07 005 144 3/8 78 90 130 140 114 7 264 120 126,11
IMM 40/A 0,07 005 144 3/8 78 90 130 140 114 7 294 150 126,10
IMM 40/A 0,07 005 144 3/8 78 90 130 140 114 7 324 180 126,10
IMM 50/A 0,09 008 144 3/8 78 90 130 140 114 7 224 80 163,57
IMM 50/A 0,09 008 144 3/8 78 90 130 140 114 7 264 120 163,58
IMM 50/A 0,09 008 144 3/8 78 90 130 140 114 7 294 150 163,57
IMM 90/A 1,85 2 345 2 235 240 300 130 270 13 795 450 1.865,47
IMM 90/B 2,80 3 345 2 235 240 300 130 270 13 795 450 2.105,70
IMM 63/A 0,30 025 205 3/4 128 - 180 190 150 9 405 200 423,80
IMM 63/A 0,30 025 205 3/4 128 - 180 190 150 9 455 250 423,80
IMM 63/A 0,30 025 205 3/4 128 - 180 190 150 9 510 300 423,79
IMM 63/B 0,40 033 205 3/4 128 - 180 190 150 9 405 200 465,00
IMM 63/B 0,40 033 205 3/4 128 - 180 190 150 9 455 250 465,01
IMM 63/B 0,40 033 205 3/4 128 - 180 190 150 9 510 300 465,01
IMM 71/A 1 05 240 1 190 - 230 225 204 9 440 200 639,32
IMM 71/A 1 05 240 1 190 - 230 225 204 9 490 250 639,31
IMM 71/A 1 05 240 1 190 - 230 225 204 9 560 325 639,32
IMM 71/B 1,2 075 240 1 190 - 230 225 204 9 440 200 696,49
IMM 71/B 1,2 075 240 1 190 - 230 225 204 9 490 250 696,49
IMM 71/B 1,2 075 240 1 190 - 230 225 204 9 565 325 696,49
IMM 80/A 1,15 100 285 1 202 220 250 260 235 9 465 200 1.010,65
IMM 80/A 1,15 100 285 1 202 220 250 260 235 9 515 250 1.010,65
IMM 80/A 1,15 100 285 1 202 220 250 260 235 9 565 300 1.010,65
IMM 80/A 1,15 100 285 1 202 220 250 260 235 9 610 350 1.010,65
IMM 80/B 1,47 150 285 1 202 220 250 260 235 9 485 200 1.057,35
IMM 80/B 1,47 150 285 1 202 220 250 260 235 9 535 250 1.057,35
IMM 80/B 1,47 150 285 1 202 220 250 260 235 9 585 300 1.057,35
IMM 80/B 1,47 150 285 1 202 220 250 260 235 9 635 350 1.057,35
IMM 90/A 1,85 2 345 2 235 240 300 130 270 13 695 350 1.719,87
IMM 90/A 1,85 2 345 2 235 240 300 130 270 13 945 600 1.865,46
IMM 90/A 1,85 2 345 2 235 240 300 130 270 13 1145 800 1.922,90
IMM 90/B 2,80 3 345 2 235 240 300 130 270 13 695 350 1.987,35
IMM 90/B 2,80 3 345 2 235 240 300 130 270 13 945 600 2.105,70
IMM 90/B 2,80 3 345 2 235 240 300 130 270 13 1145 800 2.193,61
IMM 100/B 4,43 5 380 2 235 240 300 145 270 13 730 350 2.287,26
IMM 100/B 4,43 5 380 2 235 240 300 145 270 13 980 600 2.409,37
IMM 100/B 4,43 5 380 2 235 240 300 145 270 13 1180 800 2.488,29
IMM 100/B 4,43 5 380 2 235 240 300 145 270 13 830 450 2.409,37
IMM 50/A 0,09 008 144 3/8 78 90 130 140 114 7 324 180 163,57
IMM 63/A 0,30 025 205 3/4 128 - 180 190 150 9 355 150 423,80
IMM 63/B 0,40 033 205 3/4 128 - 180 190 150 9 365 150 465,01
IMM 71/A 0,53 05 240 1 190 - 230 225 204 9 670 440 712,73
IMM 71/B 0,78 075 240 1 190 - 230 225 204 9 680 440 764,67
IMM 80/A 1,15 100 285 1 202 220 250 260 235 9 815 530 1.299,82
IMM 80/B 1,47 150 285 1 202 220 250 260 235 9 815 530 1.350,03
