MPC Medium Pressure Series

USES

These are suitable for transferring liquids containing impurities of dimensions up to 2 mm. The hydraulic components: brass impeller, scroll and pump body in aluminium, mean that is can be used with water, emulsions, and oily substances in general, with viscosity not exceeding 3° Engler (21 CST). The temperature of the liquid must not exceed 90°C. They are commonly used on:

– Machine tools (milling machines – lathes – workstations)

Filtration systems

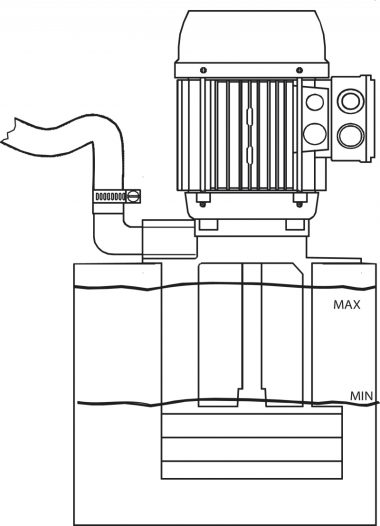

They are normally installed on a tank, with a capacity in proportion with the flow rate, at about 4 – 5 cm from the bottom. It is important to check that the maximum level of the liquid in the tank always stays 3 – 4 cm lower than the support flange (see technical drawing). In cases in which the liquid is particularly dirty, we recommend making the tank with compartments to allow the dirt to be deposited before it is picked up again by the pump.

+ Show More

General catalogue - Find out more
slide 2 of 4
Filters
FAET PART NUMBER DESCRIPTION
0501230 SACEMI ELECTROPUMP MPC 80B/210
0501231 SACEMI ELECTROPUMP MPC 80B/260
0501232 SACEMI ELECTROPUMP MPC 80B/335
0501233 SACEMI ELECTROPUMP MPC 80B/540
0501234 SACEMI ELECTROPUMP MPC 80C/240
0501235 SACEMI ELECTROPUMP MPC 80C/290
0501236 SACEMI ELECTROPUMP MPC 80C/365
0501237 SACEMI ELECTROPUMP MPC 80C/570
0501238 SACEMI ELECTROPUMP MPC 90B/260
0501239 SACEMI ELECTROPUMP MPC 90B/310
0501240 SACEMI ELECTROPUMP MPC 90B/385
0501241 SACEMI ELECTROPUMP MPC 90B/590
0501246 SACEMI ELECTROPUMP MPC 100B/280
0501247 SACEMI ELECTROPUMP MPC 100B/330
0501248 SACEMI ELECTROPUMP MPC 100B/380
0501249 SACEMI ELECTROPUMP MPC 100B/430
0501250 SACEMI ELECTROPUMP MPC 100B/620
TYPE KW INPUT C MM ØD GAS ØE MM ØF MM ØG MM H MM ØI MM ØL MM A MM B MM PRICE EACH
MPC 80B 1,10 280 1 190 230 245 204 9 490 210 1.151,74
MPC 80B 1,10 280 1 190 230 245 204 9 540 260 1.151,75
MPC 80B 1,10 280 1 190 230 245 204 9 615 335 1.253,38
MPC 80B 1,10 280 1 190 230 245 204 9 820 540 1.253,38
MPC 80C 2,00 280 1 190 230 245 204 9 520 240 1.245,15
MPC 80C 2,00 280 1 190 230 245 204 9 570 290 1.245,15
MPC 80C 2,00 280 1 190 230 245 204 9 645 365 1.346,78
MPC 80C 2,00 280 1 190 230 245 204 9 750 570 1.346,79
MPC 90B 3,10 323 1 190 230 255 204 9 583 260 1.585,00
MPC 90B 3,10 323 1 190 230 255 204 9 633 310 1.585,02
MPC 90B 3,10 323 1 190 230 255 204 9 708 385 1.688,42
MPC 90B 3,10 323 1 190 230 255 204 9 913 590 1.688,40
MPC 100B 5,60 370 1 202 220 250 275 2.457,82
MPC 100B 5,60 370 1 202 220 250 275 235 9 755 330 2.457,82
MPC 100B 5,60 370 1 202 220 250 275 235 9 805 380 2.524,50
MPC 100B 5,60 370 1 202 220 250 275 235 9 855 430 2.524,50
MPC 100B 5,60 370 1 202 220 250 275 235 9 990 620 2.588,18
