CONSTRUCTION CHARACTERISTICS:

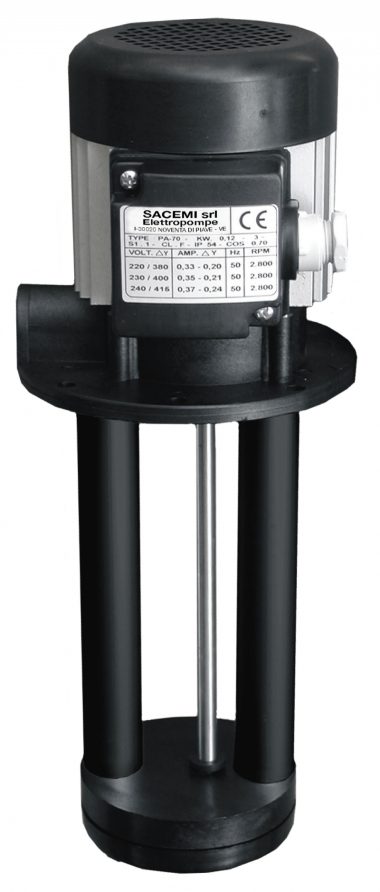

• Electric pump specifically designed for machine tools
• Electric pump with immersed dip tube without seal rings.
• PA three-phase type and single-phase PA-M type motor, insulated in class F.
• IP 54 grade protection against liquid penetration.
• Casing in extruded aluminium, protected against anodic oxidation.
• Motor shaft in stainless steel AISI 303
• NSK long-life bearings in semi-rigid supports: almost complete vibration and noise absorption.
• Thermoplastic motor parts are self-extinguishing in accordance with standards VDE 0730 and UL 94.
• PA 35M – PA 70 M type electric pumps are available either V. 220/240/50 or V. 380/400/50

Available as Single-phase on request

HYDRAULIC CHARACTERISTICS
