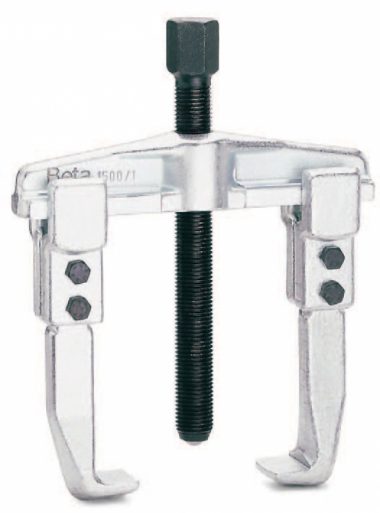

UNIVERSAL EXTRACTORS WITH TWO ARMS

DESCRIPTION

• For both internal and external use
• Arms movable along the crosspiece with lock nuts

  FAET CODE	MODEL	A mm MIN-MAX	L mm	L1 mm	HEXAGON mm	A1 mm MIN-MAX	WEIGHT Kg
  B015000301	1500/1	25-80	100	135	17	70-130	0.9
  B015000302	1500/2	25-130	100	135	17	80-180	1.1
  B015000303	1500/3	50-160	150	210	22	105-220	2.8
  B015000304	1500/4	60-200	150	210	22	120-270	3.1
  B015000305	1500/5	80-250	205	280	27	160-330	6.8
  B015000306	1500/6	80-350	205	280	27	160-420	8.1
  B015000307	1500/7	110-520	205	280	27	195-600	12.5
  B015000308	1500/8	170-640	230	310	36	260-715	23.3

UNIVERSAL EXTRACTORS WITH THREE ARMS

DESCRIPTION

• For high extraction loads
• Self-locking effect
• Sizes 4-5-6 offer a dual possibility of adjusting the arms in height

  FAET CODE	MODEL	A mm MIN-MAX	L mm	L1 mm	HEXAGON mm	WEIGHT Kg
  B015180001	1518/1	24-100	105	105	12	527
  B015180002	1518/2	32-160	150	135	17	1370
  B015180003	1518/3	40-220	220	235	19	3242
  B015180004	1518/4	80-250	240	270	22	7245
  B015180005	1518/5	80-300	350	270	22	8545
  B015180006	1518/6	80-350	400	270	22	9150
