Dahrentrad® enamelled copper wire

DESCRIPTION:

DAMID PE wire is the best of Dahrentrad products as it offers an interesting combination of THEIC modified polyester covering under a layer of polyamide/imide enamel. This combination produces a great number of qualitative advantages difficult to obtain with a single covering: high mechanical and chemical resistance together with excellent thermal characteristics that make it a n irreplaceable material where a particularly strong but malleable product is required.



FIELDS OF APPLICATION:

The Damid PE type is particularly suitable in the production of electric motors, dry and emergency transformers, small transformers, current regulators and in all the applications where a robust seal of the enamel is required.



SPECIFICATIONS:

DAMID PE is manufactured according to IEC 60317-13 specifications, in accordance with standards BS 6811:3-3.3, DIN IEC 317-13, NF C31-663 and MW 35-C.



CLASS 200:

  • Approximate temperature 200°C in compliance with IEC 60172>
  • Thermal shock > 220°C

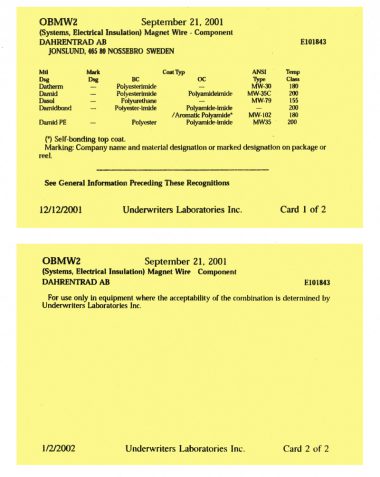

UL certification: DAMID PE, E101843, MW-35



For packing charges a contribution of 0.21/Kg is added. For shipping costs and to return reels, please refer to the general conditions of sale.



ENAMEL AND NOMEX COATED FLAT WIRE IS ALWAYS AVAILABLE. PLEASE CONTACT OUR SALES DEPARTMENT FOR PRICES AND AVAILABILITY OR REQUEST A MONTHLY STOCK LIST TO BE SENT.


N.B. Sections normally in stock

To the prices indicated on the price list, it is necessary to add the basic price of copper in force on the day of the order





+ Show More

- Show Less

General catalogue - Find out more
