Anti-condensation heaters

STRUCTURE AND APPLICATIONS:

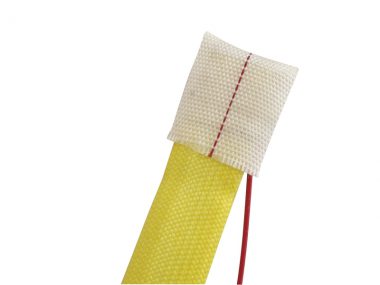

glass fibre tape, containing a multi-thread resistance in nickel-chrome, coated with polyester adhesive tape reinforced with glass fibre threads and by a further outer sleeve in glass fibre.

They can be inserted together with electric windings of motors to prevent condensation during pauses in operation.



DIMENSIONS:

  • width 13 mm (16 mm at the end)
  • length, see table
  • thickness 2 m/m
  • cold ends – length 450 mm
VOLTAGE AND POWER:

see table



OPERATING TEMPERATURE

  • class F from -50 to +155°C
  • class N from -50 to +155°C
INSTALLATION:

fixed to the electrical windings of the motor and before the impregnation process.
