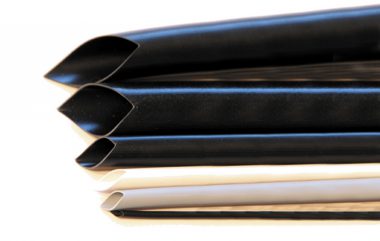

PVC Sheath 70 and 105 Degrees

GENERAL CHARACTERISTICS:

  • Wall Thickness: 0.35 mm
  • Wall tolerance: + 0.2 mm
  • diameter tolerance: + 0.2 mm
  • Breakdown voltage: 15000 V/mm
  • Flame propagation: Grade 0 self-extinguishing
PVC HT 70° C

Working temperature: 70° C

Breaking Strength: 16.3 N/mm

Elongation to breaking point: 250%

Dielectric strength: 25 Kv/mm



PVC HT 105° C

Working temperature: 105° C

Breaking Strength: 15 N/mm

Elongation to breaking point: 300%

Dielectric strength: 80 Kv/mm



Larger diameters, intermediate sizes and different colours are available on request.



UL version in the HT 105°C type available in request
