FAETISO B2 - DMD unsaturated

DESCRIPTION:

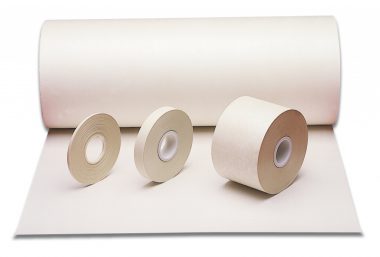

Flexible insulating paper obtained by hot bonding of a variable thickness polyester film with two layers of fabric-non-fabric polyester 50 micron thick securely anchored on the two faces of the film by special resins to increase its resistance to thermal ageing. The surface of the DMD compound can be impregnated further to the point of saturation making the thermal resistance class F (155°C).

Operating temperature:
Class B 130 °C in continuous operation
Class B/F 130/155°C
Melting point: 260° C
Shrinkage at 150 °C:

APPLICATIONS:

Laminate suitable for insulation of electric motors and transformers in Class B.F



Class B/F operating temperature: 130° in continuous use



N.B.: The weights of the packs are approximate with a tolerance of +/- 10 %. The heights may be subject to maximum variations of +/- 7.5 %. For different sizes contact our Sales Department.
