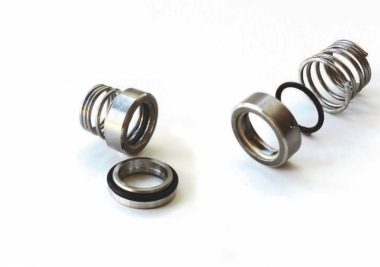

ROTEN® 2 with WIDIA - WIDIA rings

ROTEN SEALS TYPE 2 IN WIDIA/WIDIA/NBR (widia added)

ROTATION: unidirectional right; available on request with left spring (to place an order for a seal with left-handed rotation, add SX after the code: e.g. 0101028SX; 5% increase on the list price)

COUNTERFACE: with O-ring

MAX PRESSURE: 16 bar

TEMPERATURE: -25°C +90°C

USES: dirty liquids with acids

O-ring in EPDM and VITON FPM for liquids that require it.

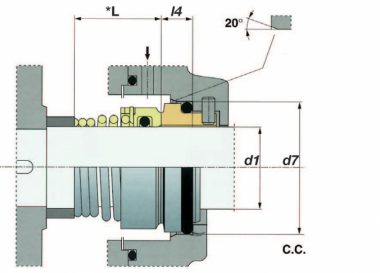

The distance *L is taken as with the seal in the working position (spring compressed).
