UNITEN® 2 for clean water, dimensions ISO3069

ROTEN SEALS TYPE UNITEN 2 IN STEEL/GRAPHITE/NBR
Installation dimensions in accordance with standard EN 12756

ROTATION: unidirectional RH; available on request with left spring (to place an order for a seal with left-handed rotation, add SX after the code: e.g. 0101028SX; 5% increase on the list price)

COUNTERFACE: with O-ring

MAX PRESSURE: 12 bar

TEMPERATURE: -25°C +90°C

USES: water, clean liquids

O-ring in EPDM and VITON FPM for liquids that require it.

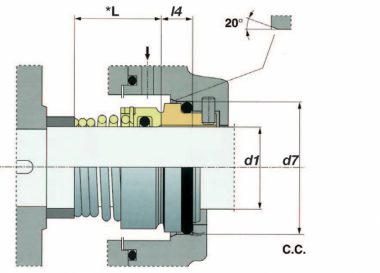

The distance *L is taken as with the seal in the working position (spring compressed).
