ROTEN® 4 WIDIA-WIDIA-PTFE dirty solvents

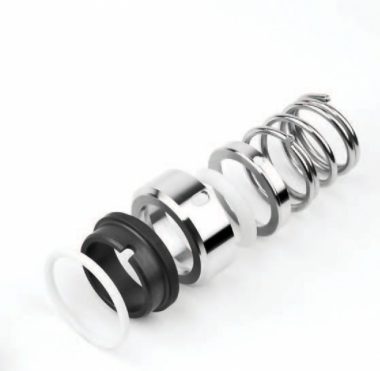

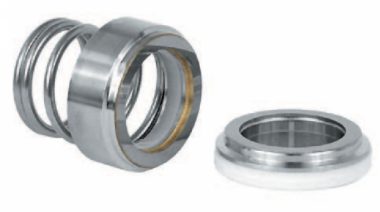

ROTEN SEALS TYPE 4 IN WIDIA/WIDIA/PTFE (widia added)

ROTATION: unidirectional RH; available on request with left spring (to place an order a seal with left-handed rotation, add SX after the code: e.g. 0101028SX; 5% increase on the list price)

COUNTERFACE: with PTFE gasket

MAX PRESSURE: 12 bar

TEMPERATURE: +10°C max +180°C

USES: for solvents


Roten 4 seals are available on request by the customer in the short and long tail versions with anti-rotation slot

Delivery at 10-15 working days from receipt of order

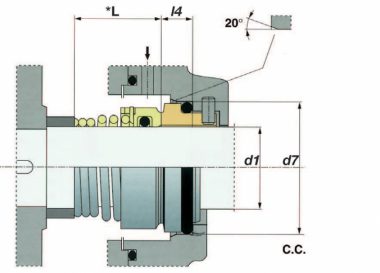

The distance *L is taken as with the seal in the working position (spring compressed)

Packages: single pieces

+ Show More

- Show Less

General catalogue - Find out more
