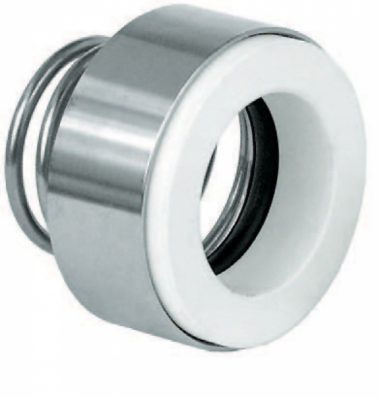

UNITEN® 5 ALUM-GRAPHITE Z-FPN ISO3069

Installation dimensions in accordance with ISO 3069 standards

CODE XYXY2ZY (extended tail): seal in CERAMIC/GRAPHITE impregnated/VITON FPM; suitable for clean hydrocarbons up to180°

ROTATION: unidirectional right; available on request with left spring (to place an order for a seal with left-handed rotation, add SX after the code: e.g. 0101028SX; 5% increase on the list price)

COUNTERFACE: with O-ring

MAX PRESSURE: 16 bar

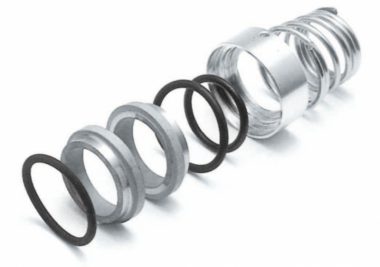

USES: particularly elastic mechanical seal, with better absorption than other models of vibrations and any misalignments of the shaft. The particular construction concept allows the slip rings (5 and 6) to be interchanged and replaced if worn which leads to considerable economic savings on maintenance. The possibility of being equipped with any type of gasket and rings (rotating and fixed) in alumina, carbon, resins with fillers, solid hard metal and solid silicon carbide, results in a universal application seal for heavier duty applications.

UNITEN 5 seals are also available with coupling on request: SILICON/SILICON, SILICON/WIDIA, SILICON/GRAPHITE, WIDIA/GRAPHITE
