ROTEN® 3S fitted as standard on KSB® pumps

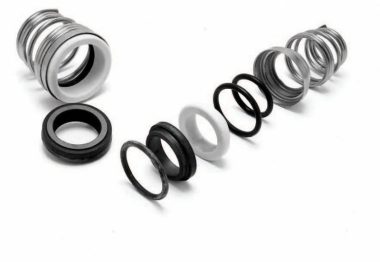

ROTEN SEALS TYPE 3S FOR KSB KLEIN PUMPS IN ALUMINA/GRAPHITE/EPM or VITON FPM

ROTATION: unidirectional, depending on the code chosen

COUNTERFACE: with O-ring

MAX PRESSURE: 16 bar

TEMPERATURE: -45°C max +150°C for EPDM; -30°C max +180°C for VITON FPM

USES: water, clean liquids



0104120: distance L + 12 mm shim

Ø14 – 16 -18 -22 in these diameters, simple seals or double opposing RH + LH seals are used

Ø  40: for this diameter the ROTEN 2S seal is always used

The distance *L is taken as with the seal in the working position (spring compressed)



Packs: single pieces.
