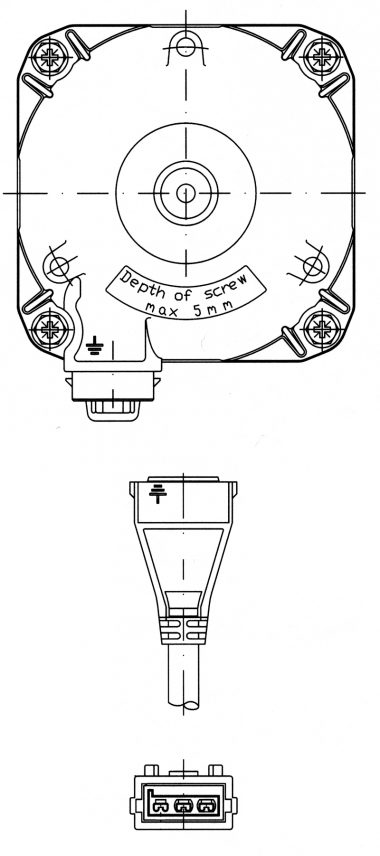

Pentavalent units with PLUG ELCO® + cable

TECHNICAL DETAILS:



  • Single-phase motors with 4 shielded poles, working at a rated voltage of 230-240V~, 50-60 Hz and a power rating of ~5 to ~34Watt.
  • Motor insulation class B.
  • Protection with the rotor stopped by trip switch protector.
  • Motor shaft support with self-lubricating, self-aligning bushes.
  • The main characteristic is that they have a connector for mobile connection to the power supply cable.
  • Can be installed horizontally or vertically.
  • Anticlockwise rotation seen from the shaft side.
  • Continuous working at ambient temperatures of -40°C to +40°C.

The motors are packed in cardboard boxes, stacked on pallets and protected with shrink-wrap. The motor was developed, designed and constructed in compliance with the Low Voltage Directive 73/23/CEE, EMC Directive 89/336/CEE, Machinery Directive89/392/CEE and following the CENELEC EN 60335-1 standard.

ACCESSORIES:



  • Grids in thermoplastic material
  • Grids in galvanised steel
  • Straight brackets
  • V brackets
  • Three-pole cables with connector with lengths from 500 mm to 5000 mm

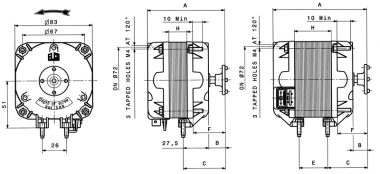

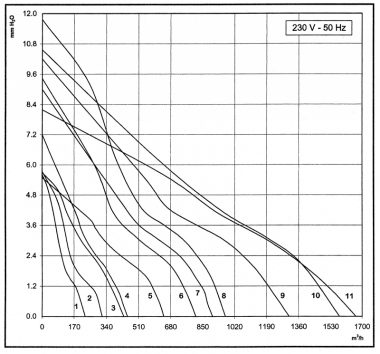

FLOW RATE CURVES:
The curves below show the aeraulic performance for the most common motor/fan couplings in aluminium.



1 = VN 5-13 + ø 154×34°

2 = VN 5-13 + ø 172×34°

3 = VN 5-13 + ø 200×28°

4 = VN 10-20 + ø 200×28°

5 = VN 10-20 + ø 230×28°

6 = VNT 16-25 + ø 230×34°

7 = VNT 16-25 + ø 254×28°

8 = VNT 25-40 + ø 254×28°

9 = VNT 25-40 + ø 300×22°

10 = VNT 34-45 + ø 300×28°

11 = VNT 34-45 + ø 300×34°
