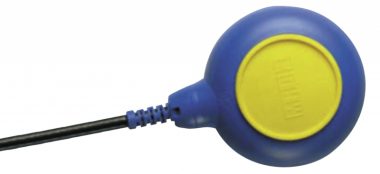

MAC 3® series floating switches

GENERAL CHARACTERISTICS:

The Mac3 level regulator is a floating switch that makes it possible to automate electrical equipment (normally pumps, but also solenoid valves, alarms, motorised gate valves, etc) when a preset level is reached. Its essential characteristic is that it is generously sized and has a shape that is without any sharp edges, which highlights the possibility of using it with waste water. This item is made with two watertight chambers, one protecting the other, for maximum safety of the internal mechanism.



TECHNICAL DETAILS

Electrical details: 20(8)A 250V ~ 16(4)A 250V ~

Certifications: ENEC/CE 10(8)A 250V ~ 10(4)A 250V ~

Operating temp: 0° ÷ + 50° C

Storage temp.: -20°C – + 80° C

Protection grade: IP68

Commutation angle: ± 45

Dimensions: 106 x 154 x54 mm

Weight: gr. 250

Volume: 430 cm3

Resistance to pressure: 1BAR

Container: Non-toxic polypropylene (PP)

Colourants: Non-toxic

Operating class: I and II

Standard cable: PVC 3X1


Packages: single pieces.

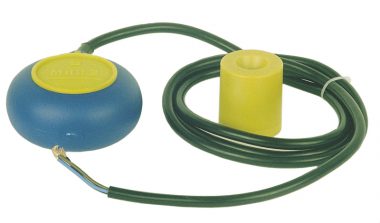

N.B.: The counterweight is only supplied on request.
