Kit installazione split (En)

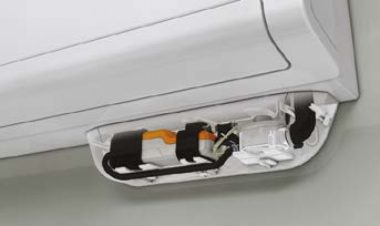

Omega pack is a solution designed for installation underneath
mini-split air conditioners up to 20 kW. The products includes the new
Si-20 pump fitted with the latest Sauermann technology with proven
reliability and everything necessary for installation.
APPLICATIONS
All wall-mounted air conditioners
ADVANTAGES
– A simple and elegant design.
– RH or LH installation aligned with the mini-split.
– Blends in perfectly with the design of the air conditioner.
– Kit ready for installation with all accessories required for assembly.
– Intuitive plate positioning.
– Reversible. Possibility of positioning to the right or left of the
mini-split.
– Can be installed on any type of wall (bricks, gypsum,
cement, etc.).
– The pre-installed “Drain Safe Device” guarantees optimum operation
of the pump and prolongs its life.
– Silent operation: 22 dBA, tested in an independent laboratory.
– The rubber dampers around the pump are specifically
designed to reduce the vibrations transmitted to the conditioner
or the wall.
– The delivery pipe is fitted with insulating anti-vibration and
anti-condensation material.
The measuring block tank is transparent and removable.
Proven and well-established reliability
– Sauermann Inside: exclusive technology.
– No filter. Designed to let particles up to 2 mm past.
– The high flow rate up to 20 l/h allows limited operating times.
– Optimum operation and prolonged life thanks to the “Drain
Safe Device” accessory.
TECHNICAL DETAILS
Sound level at 1 m: In compliance with standard EN ISO 3744 (measurement LNE
on pump in water, not installed) 22 dBA
Sound level in application at 1 m: (measured in the Sauermann
acoustic laboratory with pump in water) < 25 dBA
Insulation class (double insulation)
Measured levels ON: 16 mm, OFF: 11 mm, Safety: 19 mm
NC 8 A resistive – 250 V safety contact
Trip switch (overheating) 115°C (automatic reset)
Operating conditions 100% – Continuous operation Protection IPX2
Colour RAL 9003 – Pure white
Lid dimensions L 326 x l 58 x H 65 mm
CE and EAC safety standards
Compliant with RoHS directive and RAEE directive
