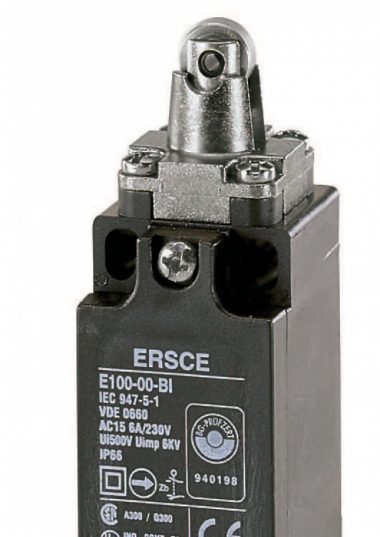

Steel roller plunger

BREMAS ERSCE

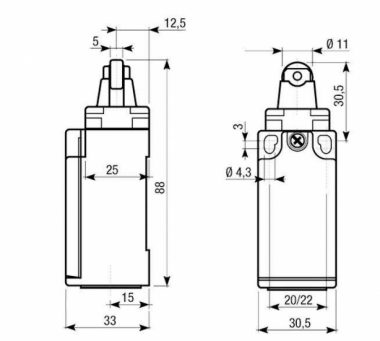

The E100 series is the most compact of the ERSCE range, produced in accordance with cenelec EN 50047 standards. It as two holes for anchoring with 20 and 22 mm centre to centre. There is a single hole for cable entry located on the bottom of the switch. It is available with metal operating heads in metal and thermoplastic body.

Compliant with standards IEC/EN 60947-1 and IEC/EN 60947-5-1.
Certification UL File E72861
Certification CSA File 026716-0-000


CABLE ENTRY

1 cable entry with thread on the bottom of the switch: Pg. 13.5
M20 (on request)
1/2″ NPT (on request)
PG11 (on request)

+ Show More

- Show Less

General catalogue - Find out more
