Single button pushbutton panel

General Characteristics:
case in self-extinguishing thermoplastic shockproof material (580Kg/cm2) with double insulation.

IP 65 protection in accordance with IEC529.

Operating temperature: -25 °C +70°C

Pre-drilled cable entries.

Keys with indelible interchangeable symbols and writing.

Resistant to external agents such as grease, oil, saline environments.

Compliant with standards IEC 947-5-1 NFC 63-140 VDE 0660-200

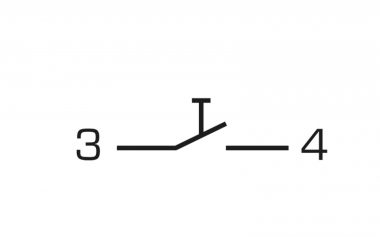

Characteristics of contact elements:
rated thermal current 10 A (4) 380V.

Rated insulation voltage 500V IEC 947-5-1 VDE 0660-200

Self-cleaning slow action double break contact.

Mechanical life: 1 million operations.

Material in accordance with directives 72/23 CEE, 93/68 CEE



Packs: single pieces
