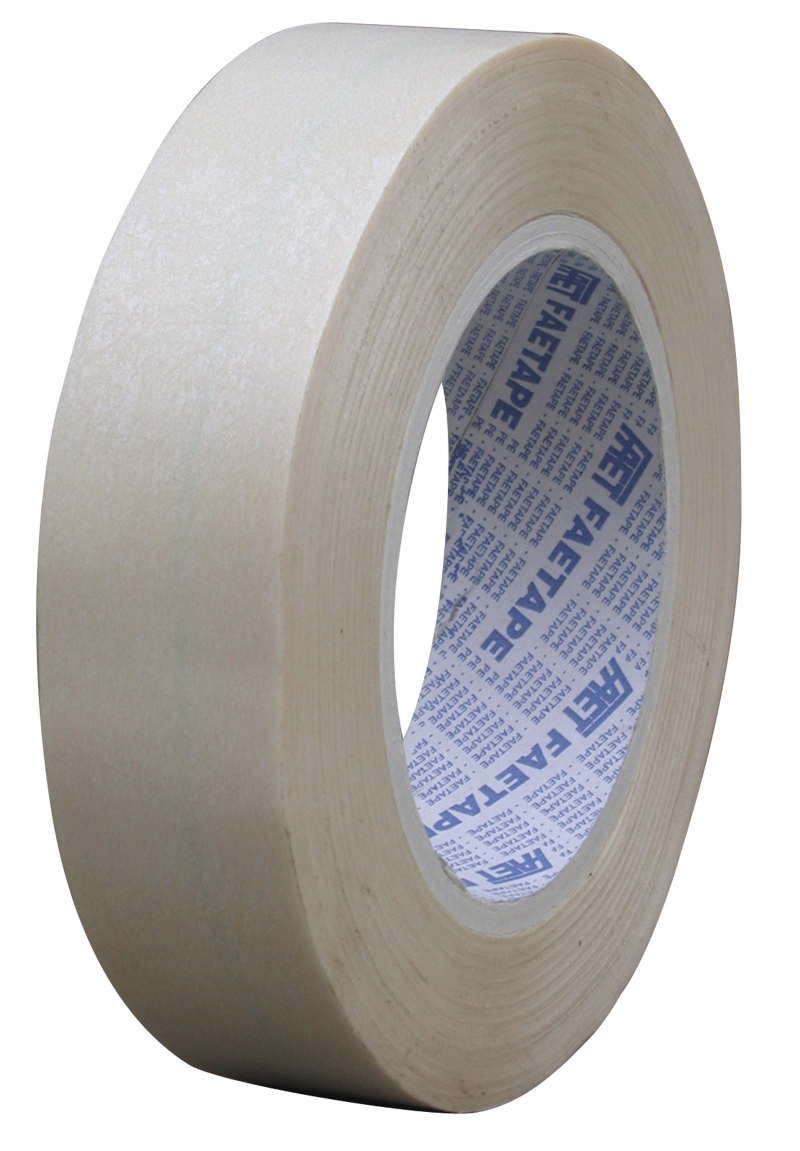

FAETAPE F1 – Nomex® – Polyester
SUPPORT: Nomex® and polyester film
ADHESIVE: Thermosetting Acrylic
ELECTRICAL CHARACTERISTICS:
- Perforation voltage 6 kV
PHYSICAL CHARACTERISTICS:
- Support thickness 0,90 ± 10% mm
- Total thickness 0,13 ± 10% mm
- Adesion: steel 118 N/25 mm
- Stretching 10%
- Breaking load 118 N/25 mm
- Temperature range -29°C + 177°C
CHEMICAL CHARACTERISTICS:
Electrolytic corrosion: 1
STANDARD COLOURS:
Cream
INTERNAL DIAMETER:
76 mm (3″)
APPLICATIONS:
- Electric motors.
- Transformers
- Windings and coils in general.
SHELF LIFE: 6 months
Nomex® is a trademark registered by Dupont de Nermours
CLASS F Working temperature: 155° in continuous service
